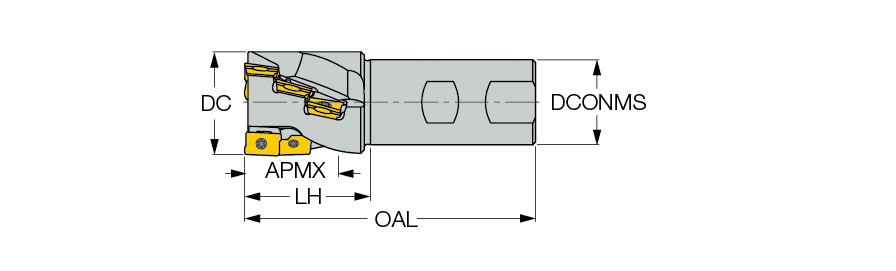

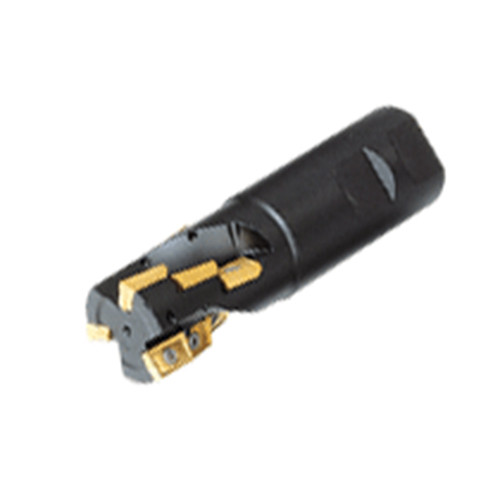

3M AXK D1.00-10-2-W100-13
| Application | | Shouldering | Slotting | | Cutting Depth | 1.38″ |
| Cutting Item Count (CICT) | 4 | Master Insert Identification (MIID) | 3M AXKT 1304PDR |
| Depth of Cut Maximum (APMX) | 0.96″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 1″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 4″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 0.96″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Heavy duty extended flute endmills carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable secure clamping and high durability in rough applications. 1.0″-1.5″ dia. range. | Country of Origin | Israel |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece. |
Shipping Info
Package Weight
0.950
