T490LNKD3.0-4.1-4-CAT50FT

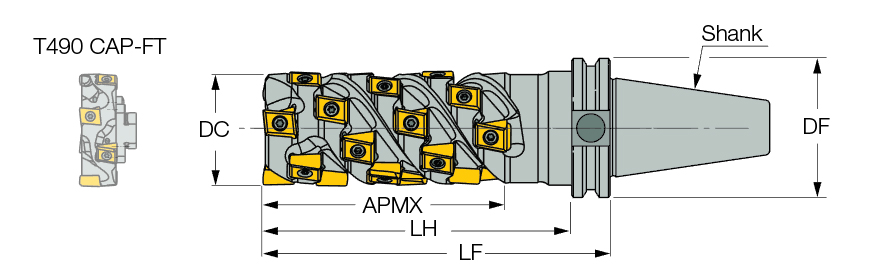

| Application | | Shouldering | | Cutting Depth | 6.07″ |
| Cutting Item Count (CICT) | 36 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 4.15″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 3″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 10.943″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 4.15″ | Connection Code Machine Side (CCMS) | CAT |
| Number of Teeth | 16 |
Product Features

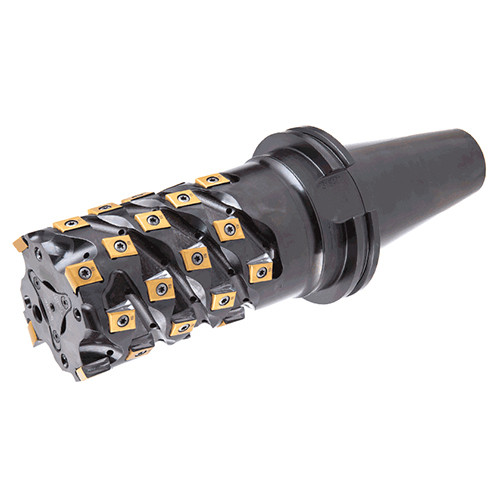

| Family Description | Basic units of modular extended flute endmills with Caterpillar tapered shanks carrying T490 LNMT/HT 1306 tangentially clamped Inserts. Can be used with many extension options. | Country of Origin | Israel |

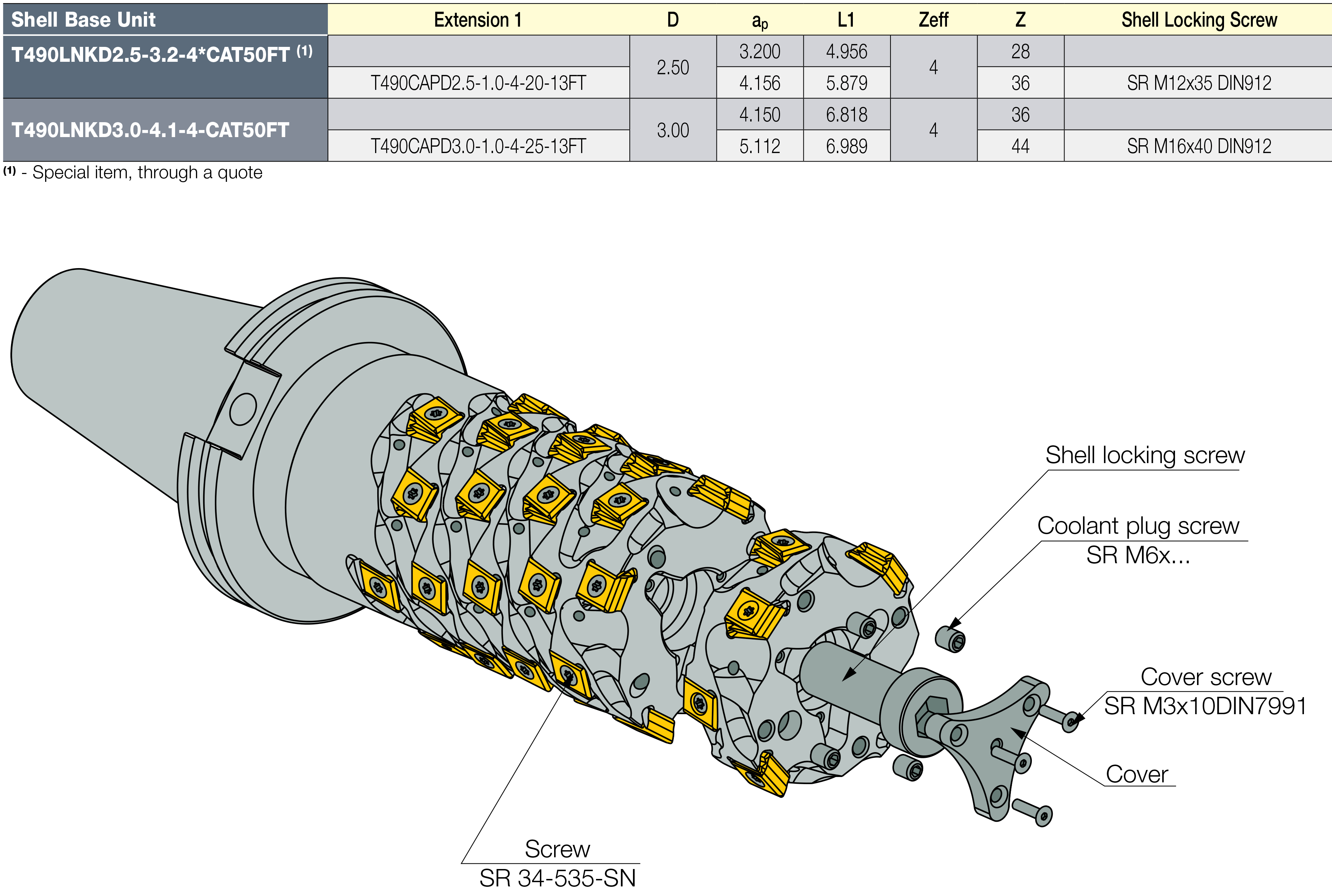

| Remarks | Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units |
Shipping Info
Additional Fees and Notes
0
Package Weight
14.822
