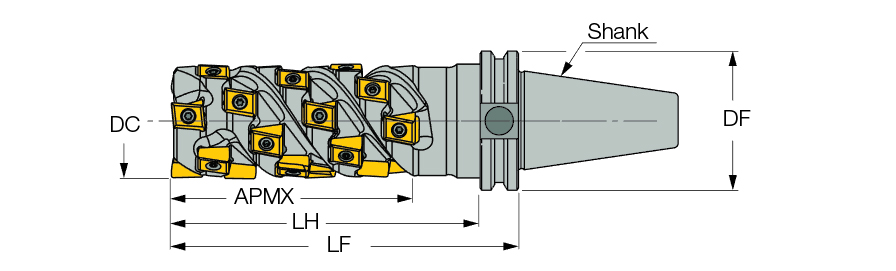

T490LNKD2.0-3.2-3-CAT5013
| Application | | Shouldering | | Cutting Depth | 4.96″ |
| Cutting Item Count (CICT) | 21 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 3.2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 9.825″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 3.2″ | Connection Code Machine Side (CCMS) | CAT |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills with Caterpillar tapered shanks carrying T490 LNMT/HT 1306 tangentially clamped Inserts. Can be used with many extension options. | Country of Origin | Israel |
Shipping Info
Package Weight
9.087
