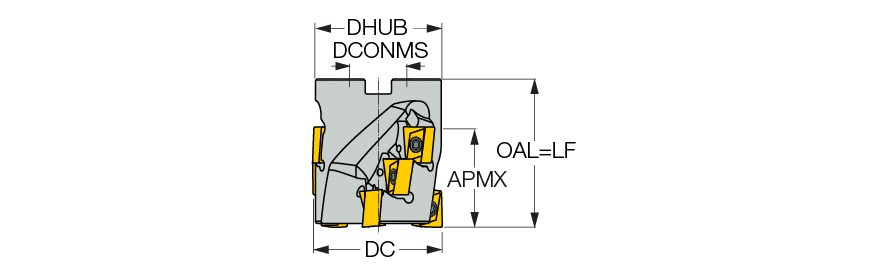

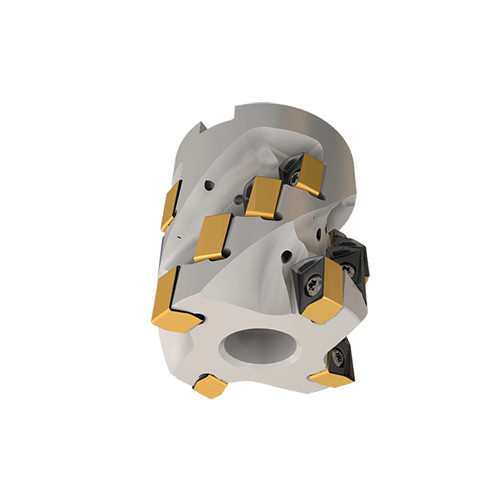

H490 SMD1.25-1.12-3-.5-09
| Application | | Shouldering | | Master Insert Identification (MIID) | H490 ANCX 090404PDR |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.12″ | Arbor Style | A |
| Cutting Diameter (DC) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 1.77″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.12″ | Hub Diameter (DHUB) | 1.191″ |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.631
