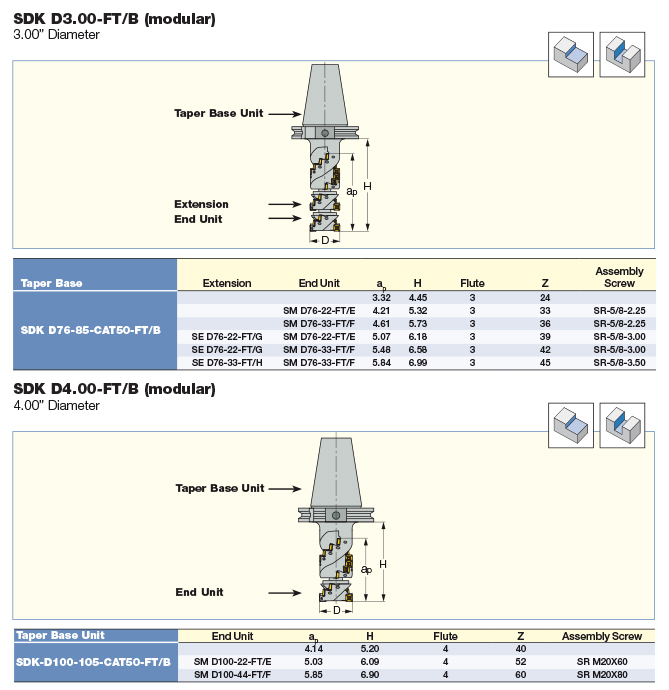

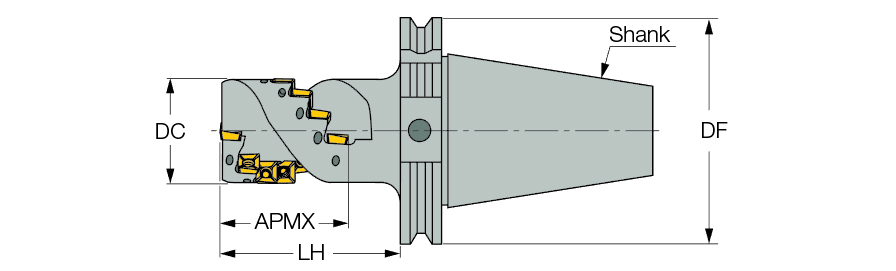

SDK D76-85 CAT50FT/B
| Depth of Cut Maximum (APMX) | 3.32″ | Number of Teeth | 24 |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.699″ | Measurement Type | Inch |
| Cutting Length | 3.32″ | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | Basic units of modular extended flute endmills with Caterpillar tapered shanks using S/QDMT 1205... inserts. Cay be used with many extension options. | Country of Origin | IL |
Shipping Info
Package Weight
11.6870
