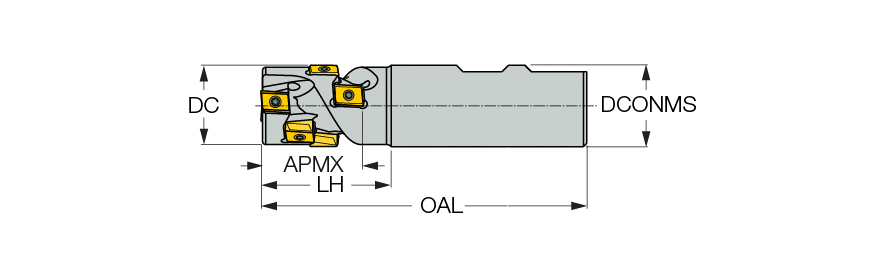

| Application | | Shouldering | | Cutting Depth | 1.87″ |
| Cutting Item Count (CICT) | 15 | Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Depth of Cut Maximum (APMX) | 1.44″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |

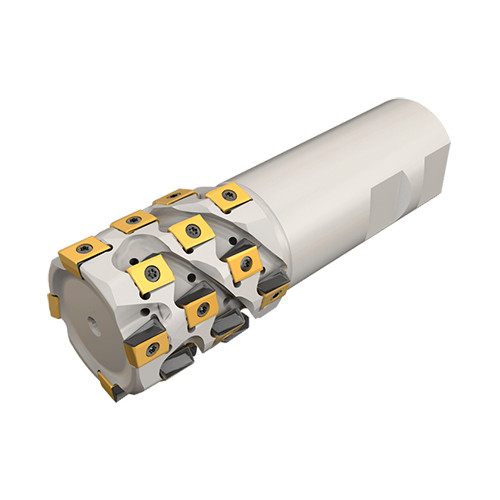

| Overall Length (OAL) | 4-1/4″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 1.44″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended Flute Endmills carrying T490 LNMT/HT 08... Tangentially Clamped Inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.15
