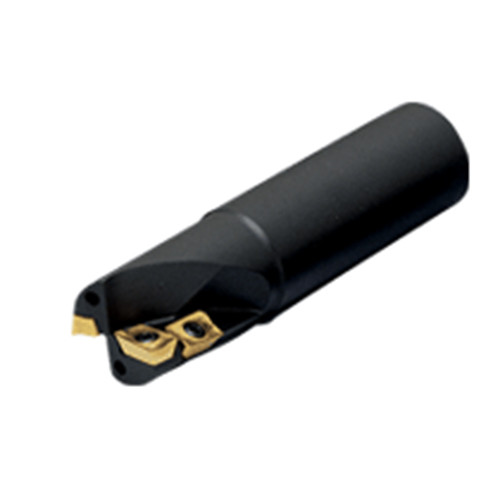

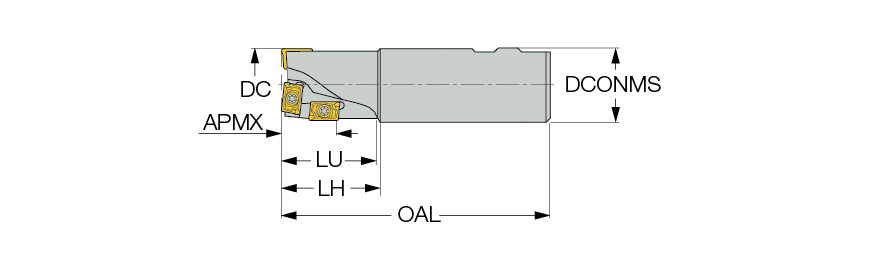

E90AC D2.00-1.0W1.25
| Application | | Counter Boring | Drill Mill | Shouldering | Slotting | | Cutting Depth | 1.71″ |
| Cutting Item Count (CICT) | 6 | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Depth of Cut Maximum (APMX) | 1.03″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 5″ | Tool Type | 90° indexable endmills |
| Cutting Length | 1.03″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Drilling endmills carrying APKT/ADKT inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Length
6.43750
Package Width
2.50000
Package Height
2.50000
Package Weight
2.147
Related Documentation
Insert for E90AC D1.00 APKT 1003, for E90AC D1.25-D1.50 AD..1505 and XPMT 1004, for E90AC D2.00 and D50 AD..1505
