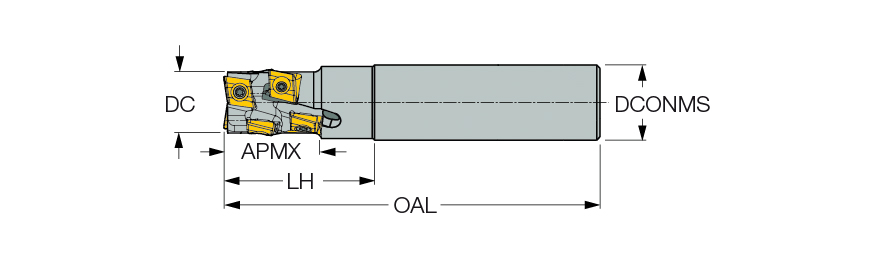

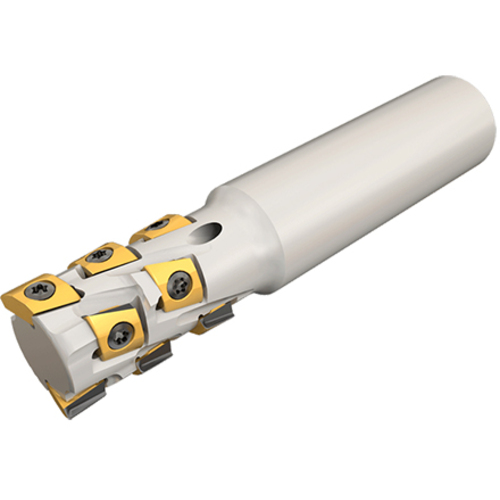

T290 LNK D16-24-02-C16-05
| Application | | Shouldering | | Cutting Depth | 31 mm |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | T290 LNHT 050202TR |
| Depth of Cut Maximum (APMX) | 24 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 80 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 24 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills with T290 LNMT/HT 0502... tangentially clamped inserts | Country of Origin | Israel |
| Remarks | For cutting recommendations and adaptation, click on More Info |
Shipping Info
Package Weight
0.326
