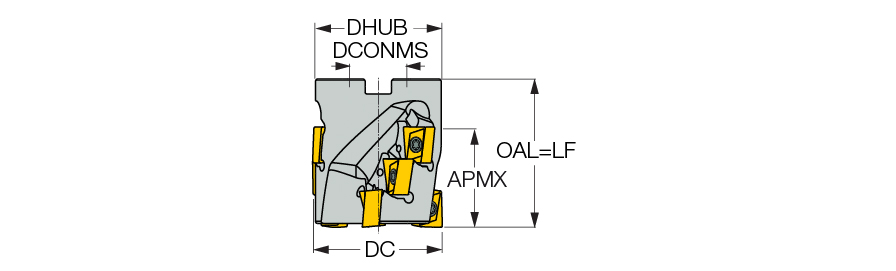

H490 SM D050-42-5-22-09
| Depth of Cut Maximum (APMX) | 42 mm | Master Insert Identification (MIID) | H490 ANKX 09 |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Arbor Style | A |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Cutting Length | 42 mm | Tool Type | 90° Extended Flute Shell Mill |
| Number of Teeth | 30 |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | IL |

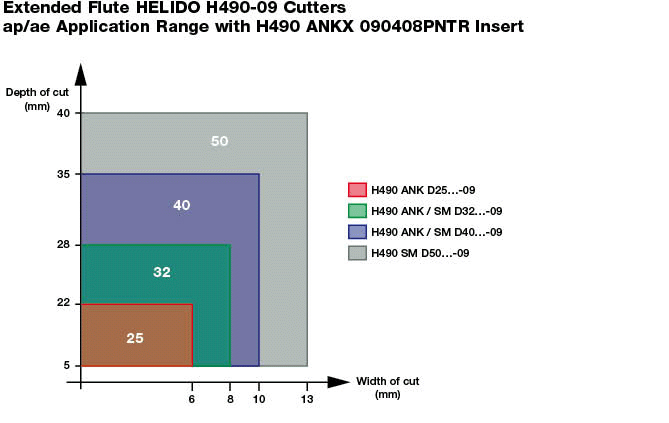

| Remarks | ae(max)=0.25xD |
Shipping Info
Package Weight
1.4600
