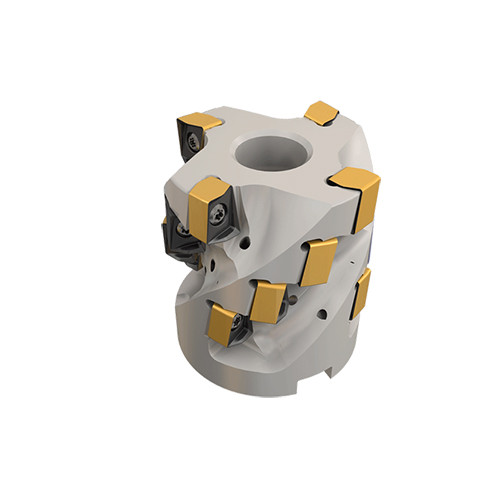

H490 SM D050-36-3-22-12
| Application | | Shouldering | | Master Insert Identification (MIID) | H490 ANKX 1205PNTR-R |
| Cutting Item Count (CICT) | 9 | Coolant Supply Property (CSP) | Coolant Thru |

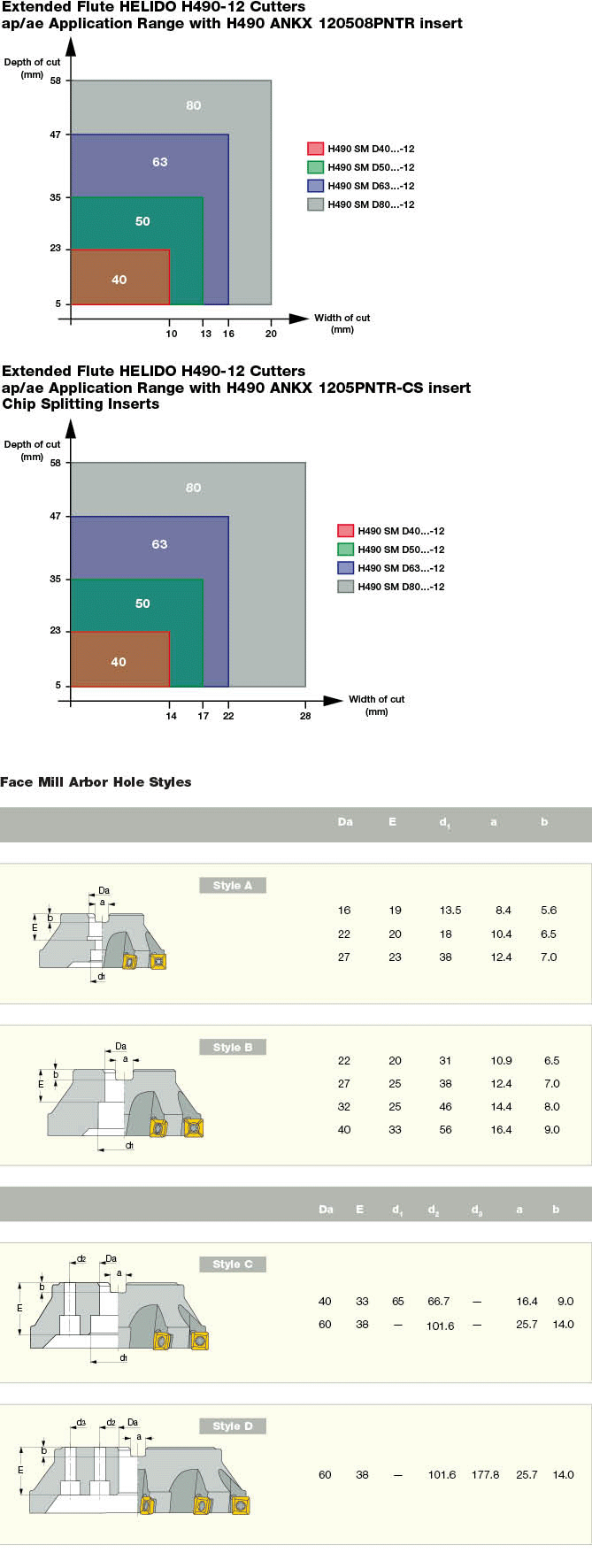

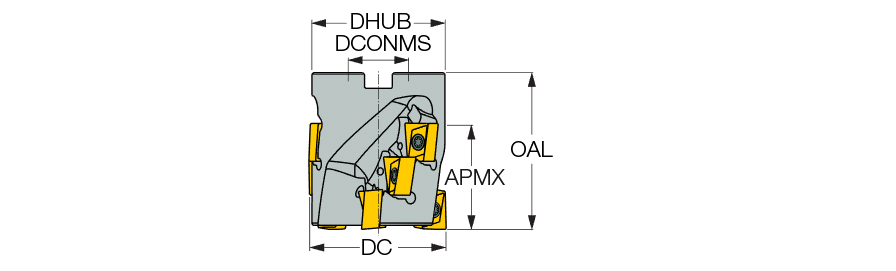

| Depth of Cut Maximum (APMX) | 35 mm | Arbor Style | A |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 60 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 35 mm | Hub Diameter (DHUB) | 48 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
1.744
