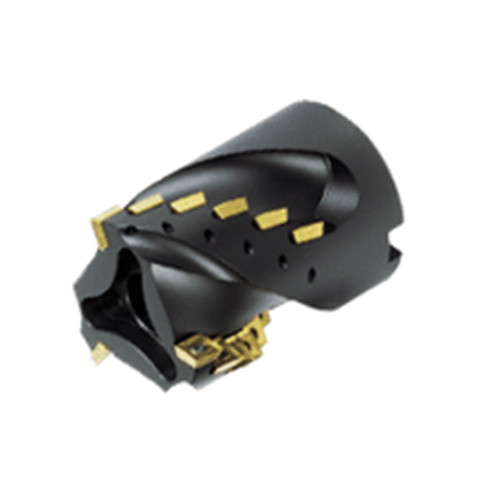

SDK D63-53-27-FT/A

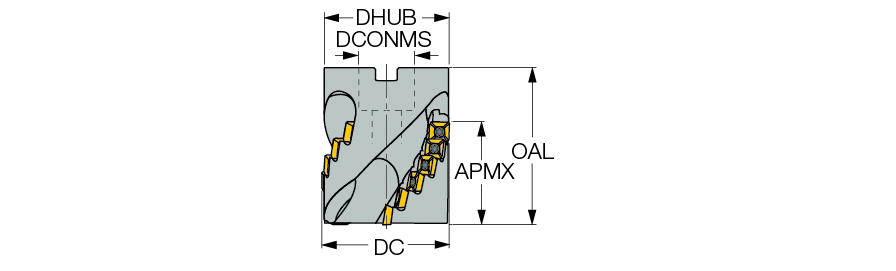

| Application | | Shouldering | Slotting | | Master Insert Identification (MIID) | SDMT 1205 |
| Cutting Item Count (CICT) | 15 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 53 mm | Arbor Style | A |
| Cutting Diameter (DC) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 76 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 53 mm | Hub Diameter (DHUB) | 60.9 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Basic units of modular extended flute shell mills carrying S/QDMT 1205... inserts. Can be used with many extension options. | Country of Origin | Israel |
Shipping Info
Package Weight
2.471
