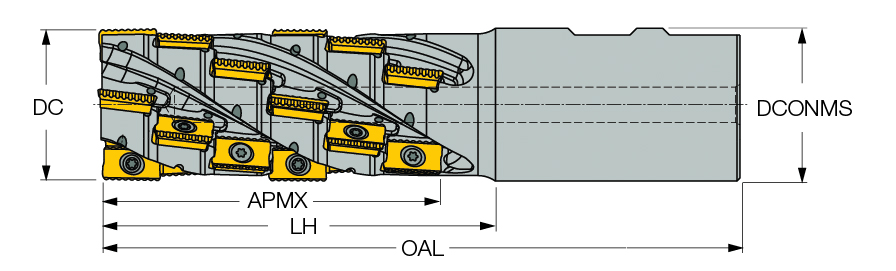

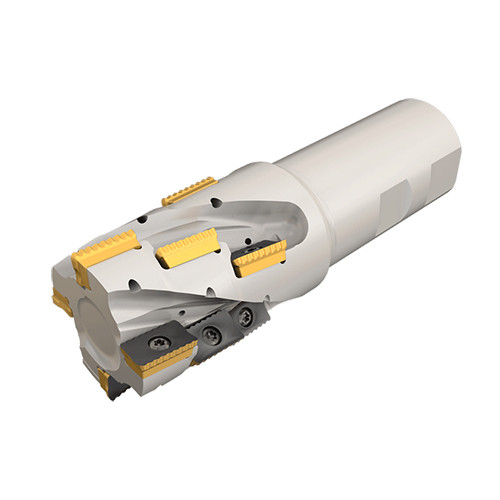

P290 ACK D50-3-160-W50-18
| Application | | Rampdown | Shouldering | | Cutting Depth | 185 mm |
| Cutting Item Count (CICT) | 27 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 160 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 265 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 160 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying 12 and 18 mm long edged inserts. | Country of Origin | Israel |
| Remarks | Maximum width of cut (AE) refer to More Info. |
Shipping Info
Package Weight
6.706
