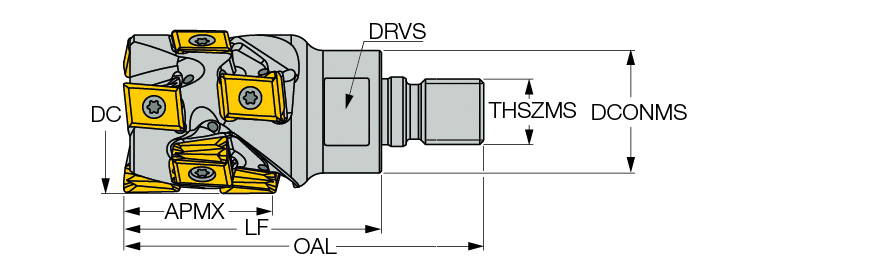

T490 LNK-D40-36-3-M16-13
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 9 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 36 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 30 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 88 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 36 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features

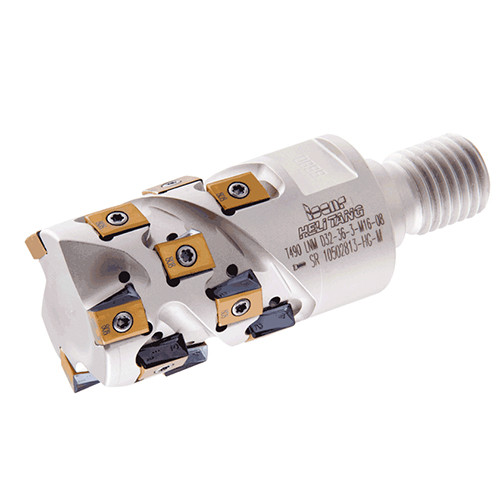

| Family Description | Extended flute and endmill with a FLEXFIT threaded adaptation carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
1.041
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
