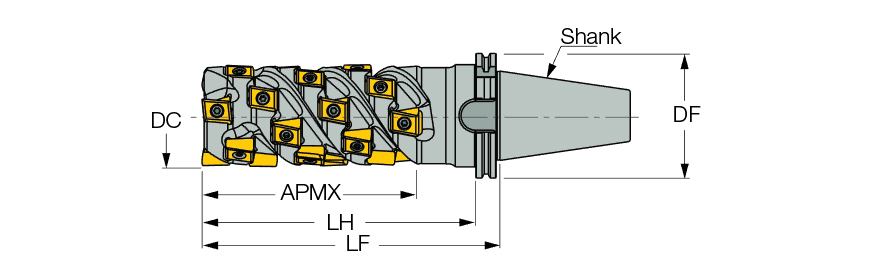

| Application | | Shouldering | | Cutting Depth | 154 mm |
| Cutting Item Count (CICT) | 28 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 82 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 97.5 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 274.75 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 82 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Number of Teeth | 16 |
Product Features

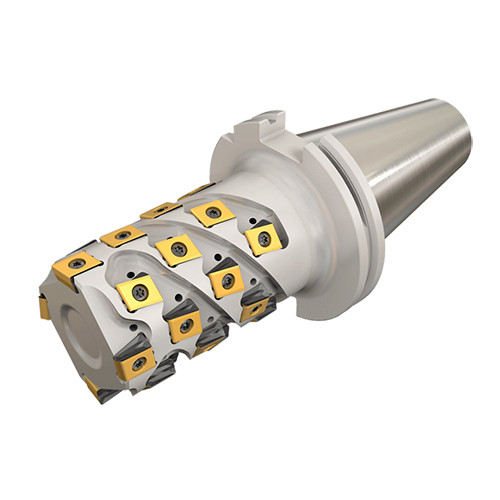

| Family Description | Extended flute endmills with DIN69871 tapered shanks carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical 13 mm long cutting edges (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
16.660
