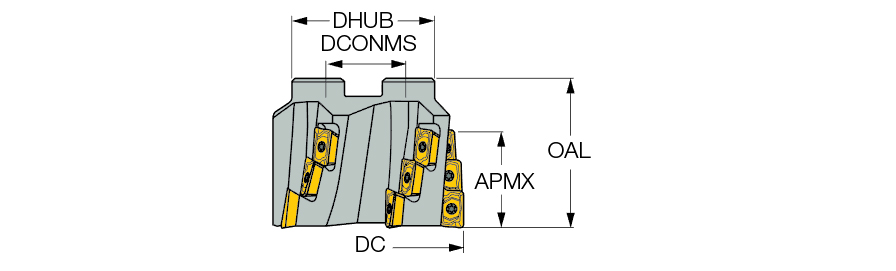

SM D100-38-40-M
| Depth of Cut Maximum (APMX) | 38 mm | Master Insert Identification (MIID) | AD 1505 |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Arbor Style | B |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Cutting Length | 38 mm | Tool Type | 90° Extended Flute Shell Mill |
| Number of Teeth | 18 |
Product Features
| Family Description | HELI2000, Extended flute shell mills carrying HM90 ADKT 1505... inserts. | Country of Origin | IL |
Shipping Info
Package Weight
4.5840
