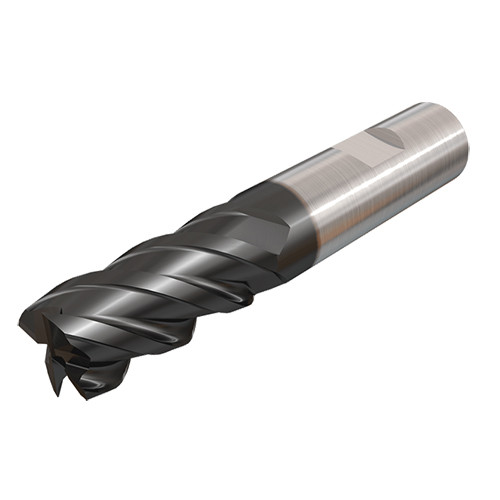

EC160B32-4C16R1 IC900
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 1 mm RE ; 4 FL ; 32 mm LBS ; Carbide ; AlTiN

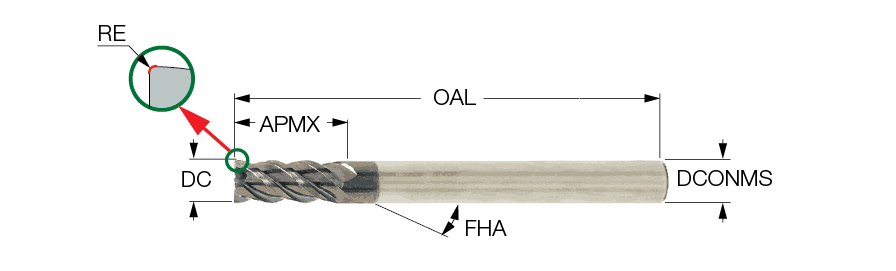

| Cutting Diameter (DC) | 16 mm | Corner Radius (RE) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | IC900 |
| Overall Length (OAL) | 92 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 32 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4 flute, 45° helix medium length solid carbide endmills | Country of Origin | Israel |
Shipping Info
Package Weight
0.529
