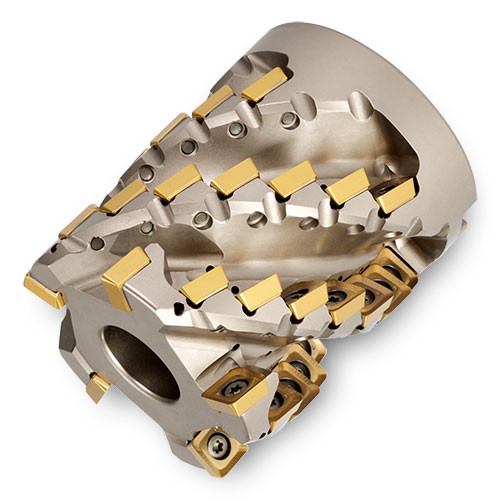

25J3P-20035D1R02
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Length | 2.6″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 Teeth | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 2.6″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 3-1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert corners: .031″, .062″, .125″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
