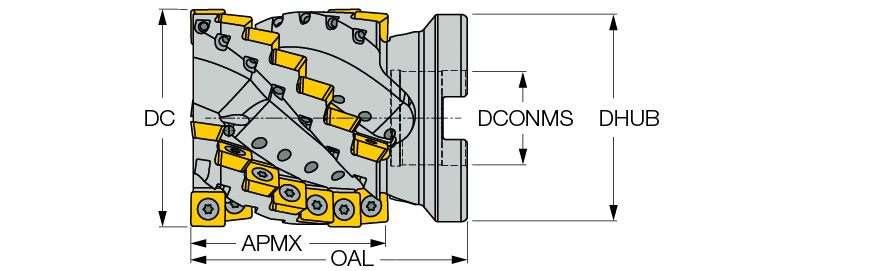

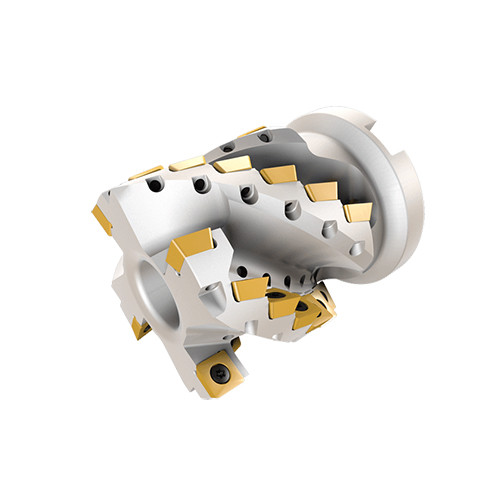

SDK D2.0-1.9-3-1.00-10-C
| Application | | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | SDHT 10 |
| Depth of Cut Maximum (APMX) | 1.9071″ | Coolant Supply Property (CSP) | Coolant Thru |

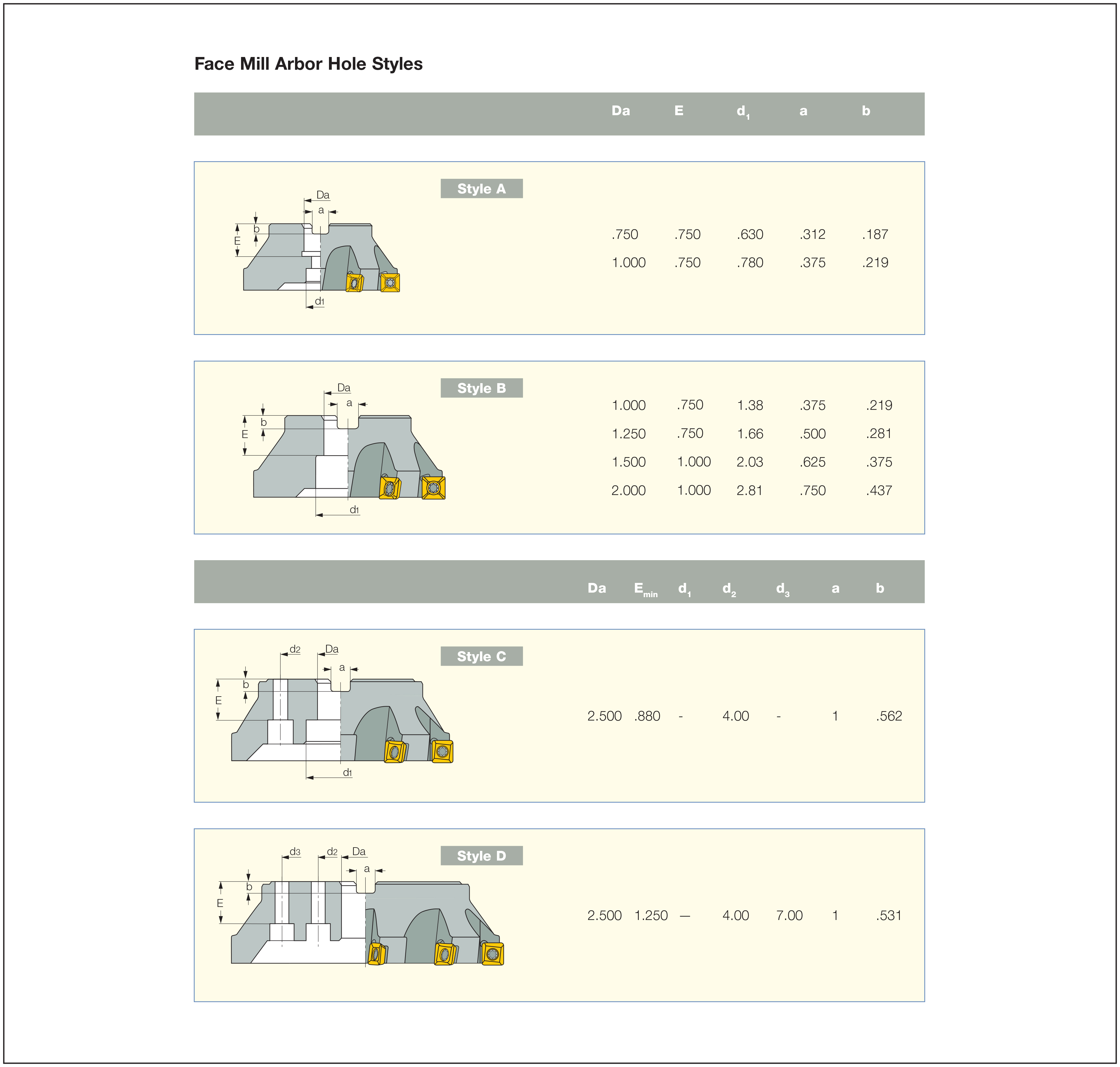

| Cutting Diameter (DC) | 2″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 3.15″ | Body Material | Steel |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 1.921″ |
Product Features
| Family Description | Extended flute shell mills carrying SDHW/T 100408... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.984
