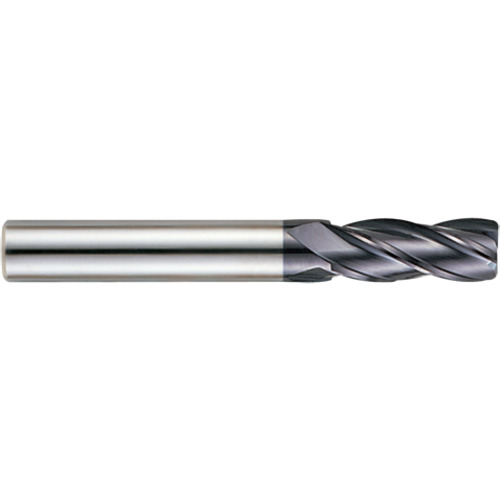

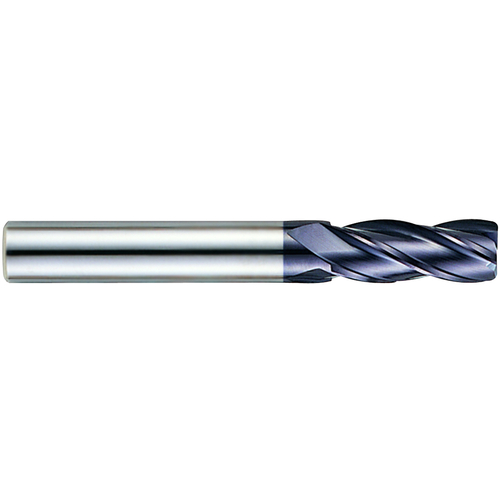

Corner Radius End Mill; 16 mm Dia. × 50 mm LOC × 16 mm Shank Dia. × 110 mm OAL ; 4 FL ; Carbide ; Y-Coating ; Series GM819
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 50 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 110 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299″ |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | GM819 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.0197″ |
| Shank Type | Round | Trade Name | X Power Pro |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
1.25
Package Height
1.25
Package Weight
0.1
