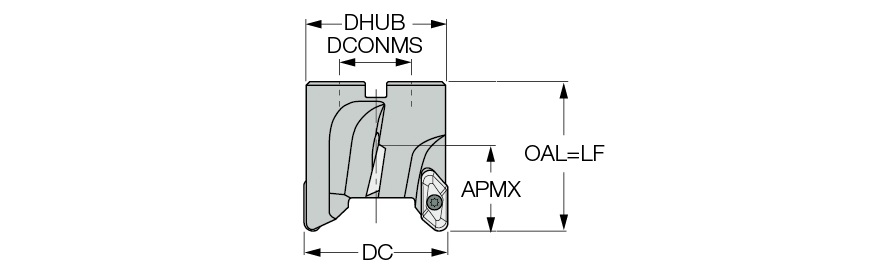

SM D2.0-1.50-1.00-22
| Depth of Cut Maximum (APMX) | 1.55″ | Master Insert Identification (MIID) | APC 22 |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | A |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-1/4″ | Measurement Type | Inch |
| Cutting Length | 1.55″ | Tool Type | Extended Flute for Aluminum |
| Number of Teeth | 4 |
Product Features
| Family Description | Extended flute shell mills, used for machining aluminum, carrying APCR 2206..-HM inserts. | Country of Origin | Israel |
| Remarks | Use APCR 220650-HM inserts on the tool face and APCR 220605-HM in the upper pockets. Insert tightening torque: 53 lbfxin |
Shipping Info
Package Weight
1.931
