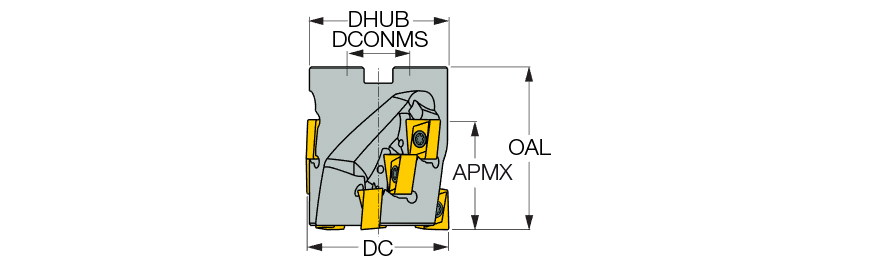

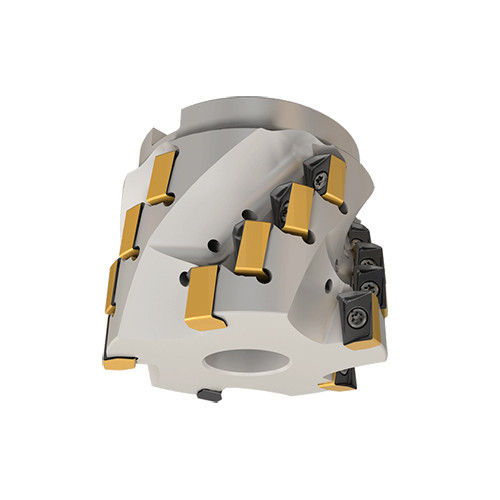

H490 SMD3.0-1.8-4-1.25-17
| Application | | Shouldering | | Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.83″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 2.76″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.83″ | Hub Diameter (DHUB) | 2.86″ |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | Israel |
| Remarks | Inserts with corner radii larger than .031 should only be used on the face of the cutter |
Shipping Info
Package Weight
3.948
