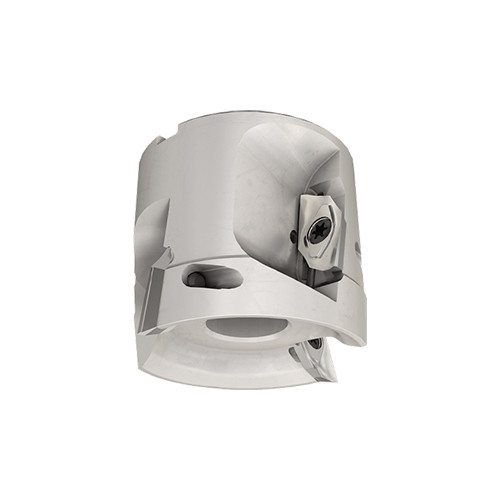

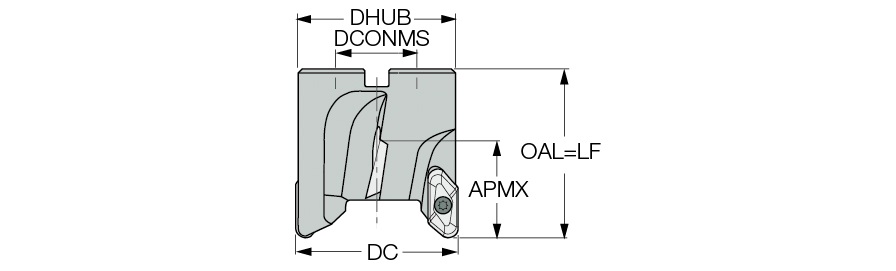

SM D2.50-1.18-1.00-16
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Master Insert Identification (MIID) | HM90 APCR 160502R-P |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.18″ | Arbor Style | A |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 2.16″ | Tool Type | Extnd. flute for Aluminum |
| Cutting Length | 1.18″ | Hub Diameter (DHUB) | 2.36″ |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .079, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .2 For adaptation, click on More Info |
Shipping Info
Package Weight
1.896
