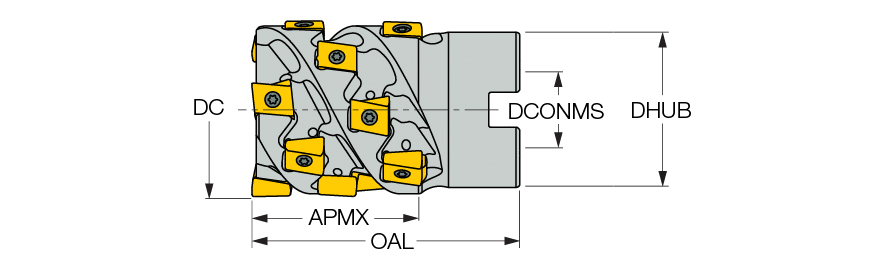

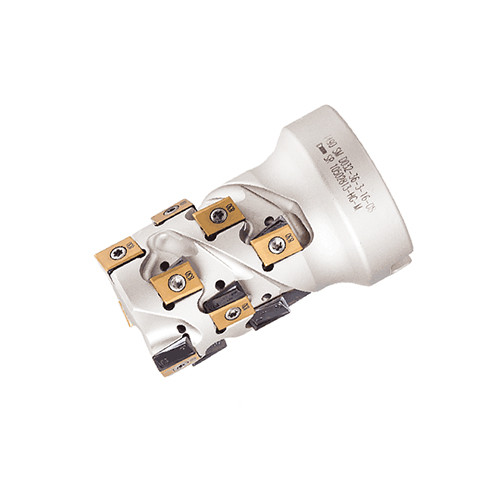

T490 SMD1.25-1.44-3-.50*8
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 15 | Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Depth of Cut Maximum (APMX) | 1.44″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/4″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 1.377″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/4″ | Body Material | Steel |
| Cutting Length | 1.44″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extended flute shell mills carrying T490 LNMT/HT 0804... tangentially clamped inserts (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
0.485
