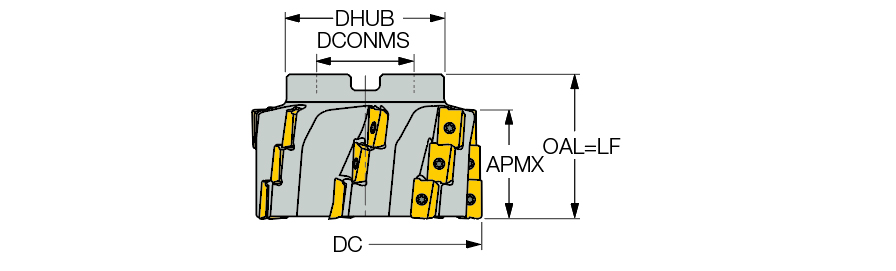

3M SM D2.5-1.50-4-1.00-20
| Depth of Cut Maximum (APMX) | 1.57″ | Master Insert Identification (MIID) | 3M AXKT 20 |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | A |
| Flute Count (NOF) | 8 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.6″ | Measurement Type | Inch |
| Cutting Length | 1.57″ | Tool Type | 90° Extended Flute Shell Mill |
| Number of Teeth | 8 |
Product Features
| Family Description | MILL2000, Heavy duty extended flute shell mills carrying 3M AXKT 1304.../2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications. | Country of Origin | IL |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece |
Shipping Info
Package Weight
1.6956
