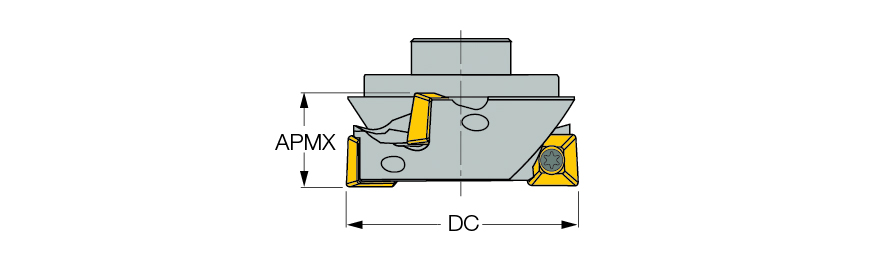

SM D100-44-FT/F
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Number of Teeth | 20 |
| Cutting Item Count (CICT) | 4 | Master Insert Identification (MIID) | S/QDMT 12 |
| Depth of Cut Maximum (APMX) | 1.732″ | Coolant Supply Property (CSP) | External Coolant |
| Cutting Diameter (DC) | 3.937″ | Arbor Style | Arbor Hole |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2.699″ | Tool Type | 90° Extended Flute Shell Mill |
| Cutting Length | 1.732″ |
Product Features
| Family Description | End units for modular extended flute cutters. Use S/Q/XPMT 10... inserts for 2.0″ cutter diameter and S/QDMT 1205... inserts for larger diameters. | Country of Origin | IL |
Shipping Info
Package Weight
3.6050
