| Application | | Shouldering | | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Cutting Item Count (CICT) | 6 | Coolant Supply Property (CSP) | Coolant Thru |

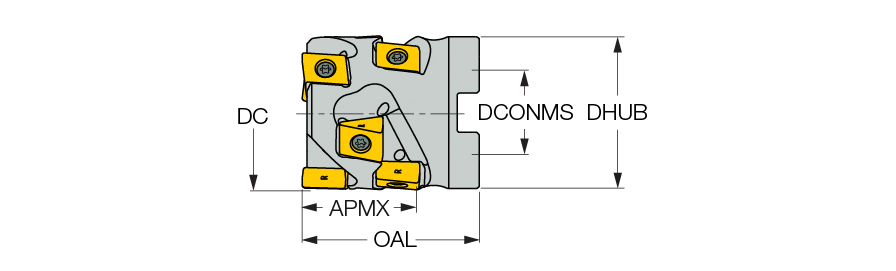

| Depth of Cut Maximum (APMX) | 1.43″ | Arbor Style | A |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 2.44″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.43″ | Hub Diameter (DHUB) | 1.4″ |
| Number of Teeth | 16 |
Product Features

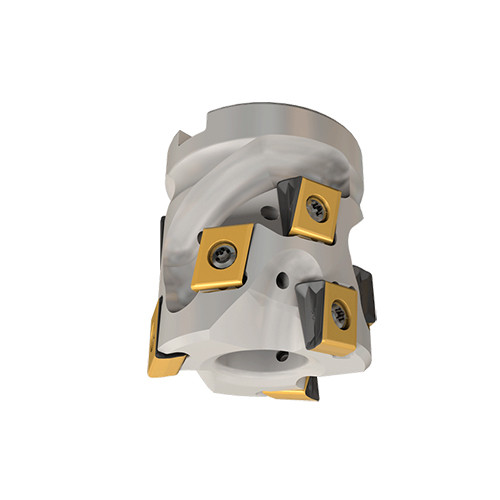

| Family Description | Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
1.543
