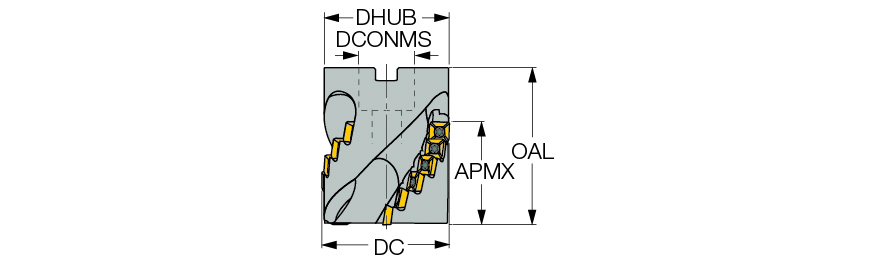

SDK D76-64-31.7FT/A
| Application | | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | QDMT 1205PDN-RM |
| Depth of Cut Maximum (APMX) | 2.52″ | Coolant Supply Property (CSP) | External Coolant |
| Cutting Diameter (DC) | 3″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 2.91″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 3.86″ | Body Material | Steel |
| Cutting Length | 2.52″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Basic units of modular extended flute shell mills carrying S/QDMT 1205... inserts. Can be used with many extension options. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
4.828
