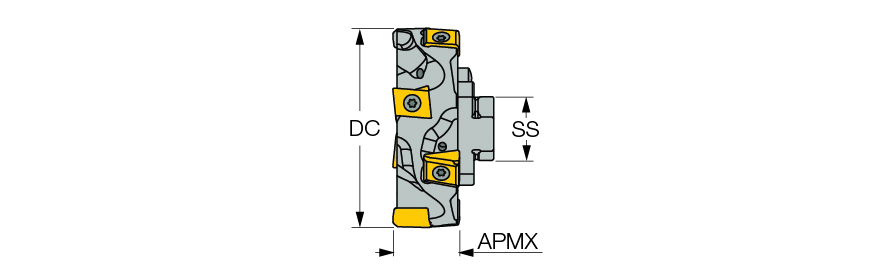

T490CAPD2.5-1.0-4-20-13FT
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | T490 LNHT 1306..PNT |
| Depth of Cut Maximum (APMX) | 0.96″ | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter (DC) | 2-1/2″ | Arbor Style | Arbor Hole |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 1.437″ | Body Material | Steel |
| Cutting Length | 0.96″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extension units for modular extended flute shell mills. | Country of Origin | Israel |
Shipping Info
Package Weight
7.716
