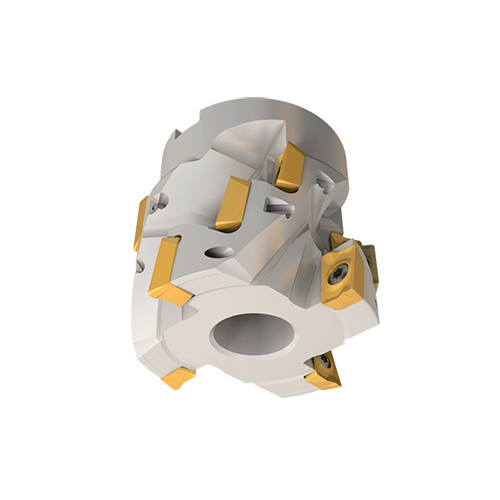

SM D2.5 -1.50-1.00-M

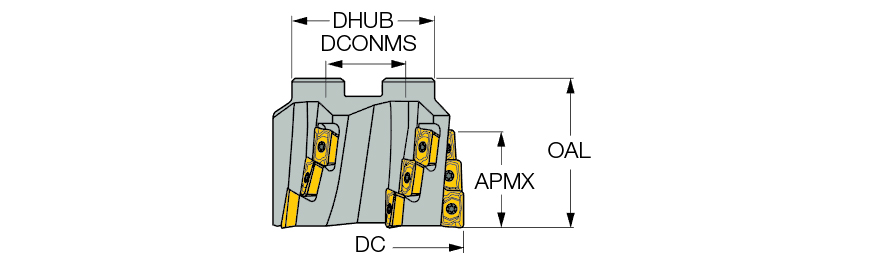

| Application | | Facing | Rampdown | Shouldering | Slotting | | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 2.38″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1-1/2″ | Hub Diameter (DHUB) | 2.13″ |
| Number of Teeth | 16 |
Product Features
| Family Description | HELI2000, Extended flute shell mills carrying HM90 ADKT 1505... inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.266
