| Application | | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |

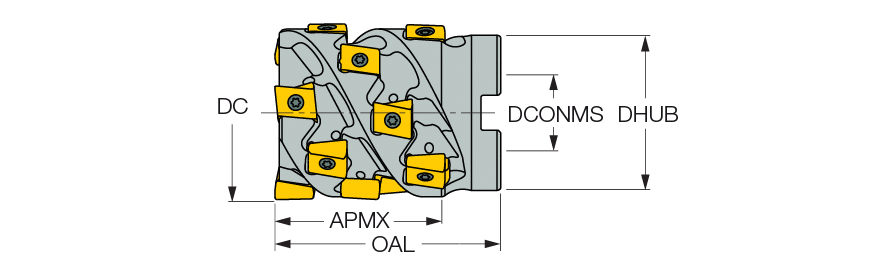

| Depth of Cut Maximum (APMX) | 1.87″ | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter (DC) | 1.968″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 2.283″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Overall Length (OAL) | 2.618″ | Body Material | Steel |

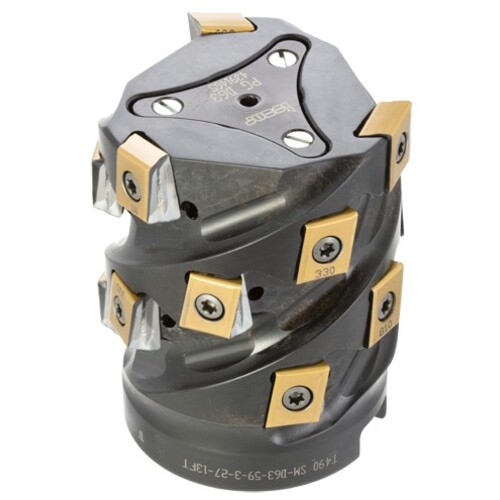

| Cutting Length | 1.87″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Basic units for modular extended flute shell mills with T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line). | Country of Origin | Israel |

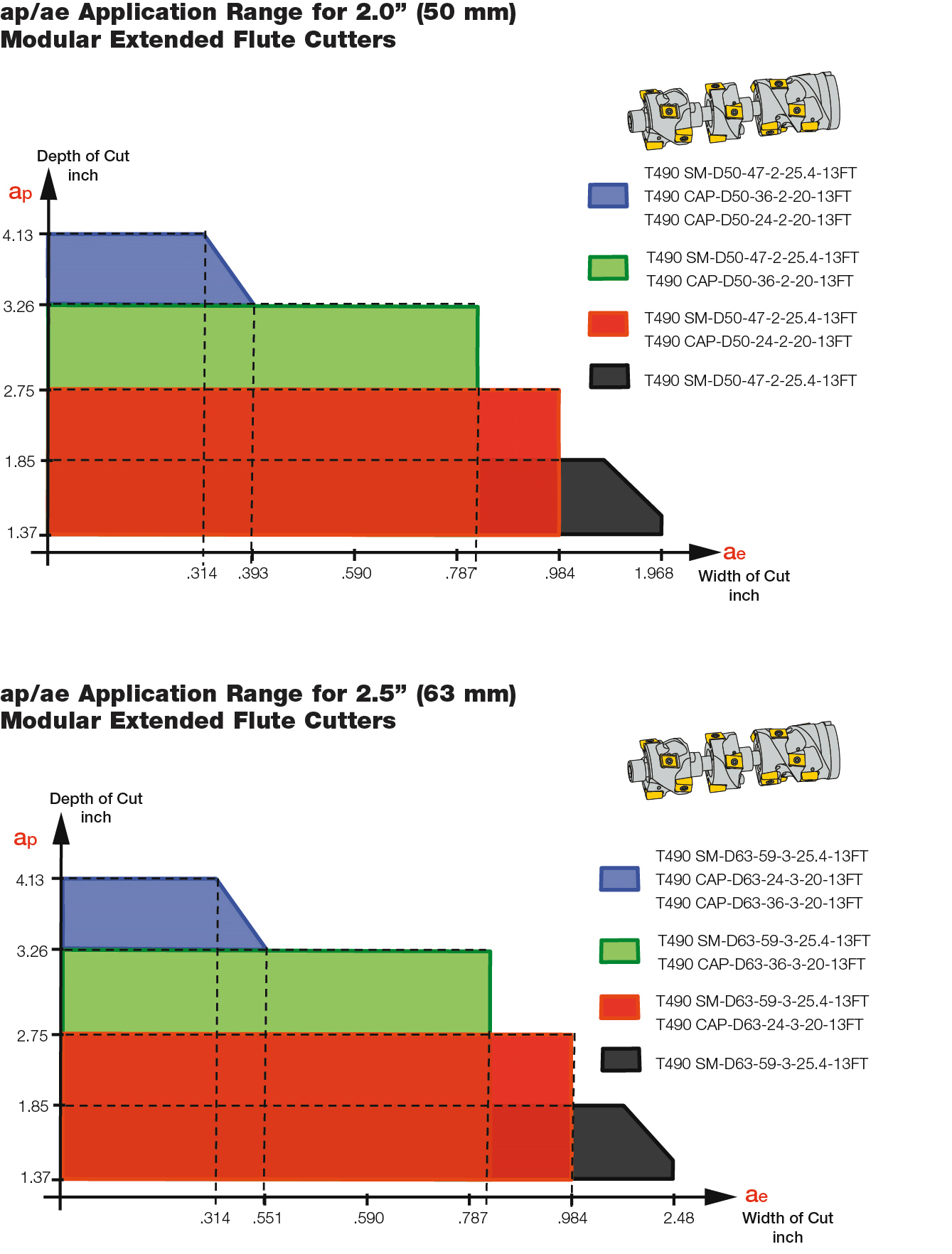

| Remarks | ae max for regular inserts, up to 0.25xD ae max for -CS (chip splitting) inserts, up to 0.35xD For adaptation, click on "More Info" |
Shipping Info
Package Weight
1.316
