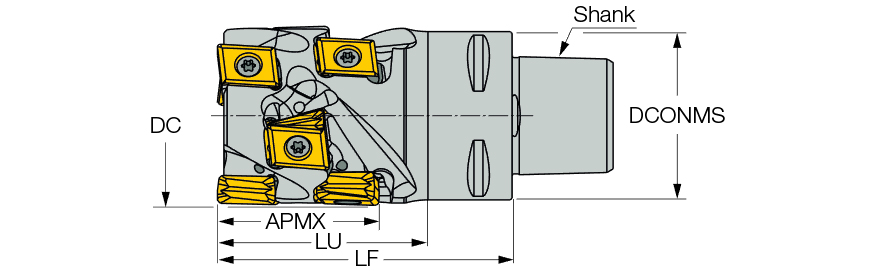

| Application | | Shouldering | | Cutting Depth | 2.992″ |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | T490 LNHT 1306..PNT |
| Depth of Cut Maximum (APMX) | 1.85″ | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter (DC) | 1.968″ | Arbor Style | Arbor Hole |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 5.433″ | Body Material | Steel |
| Cutting Length | 1.85″ | Tool Type | 90° Extended flute endmills |
| Number of Teeth | 12 |
Product Features
| Family Description | Extended flute endmills with CAMFIX shanks carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .512″ long cutting edges (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
3.708
