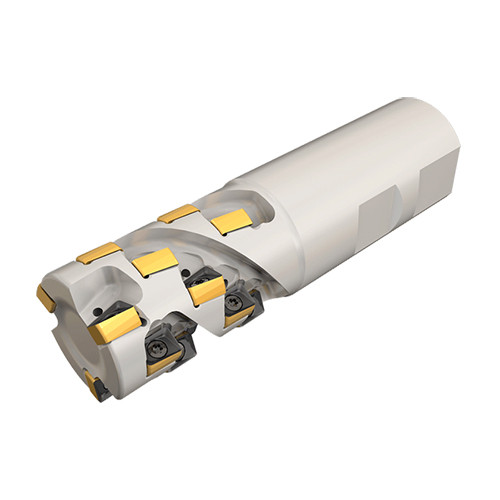

H490 ANKD1.25-1.68-W1.2-9
| Application | | Shouldering | | Cutting Depth | 1.96″ |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | H490 ANCX 090404PDR |
| Depth of Cut Maximum (APMX) | 1.68″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 4.52″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 1.68″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
1.314
