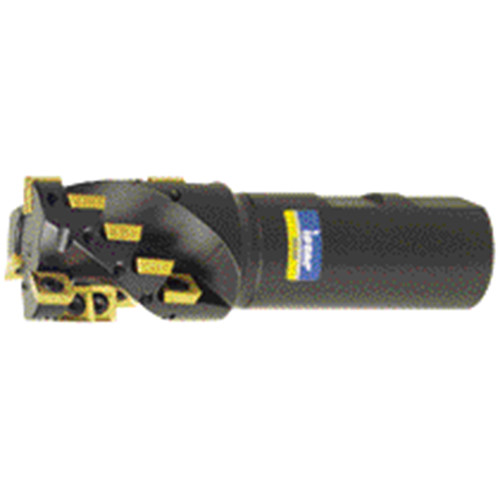

SPK 1.25-1.4W1.25-10

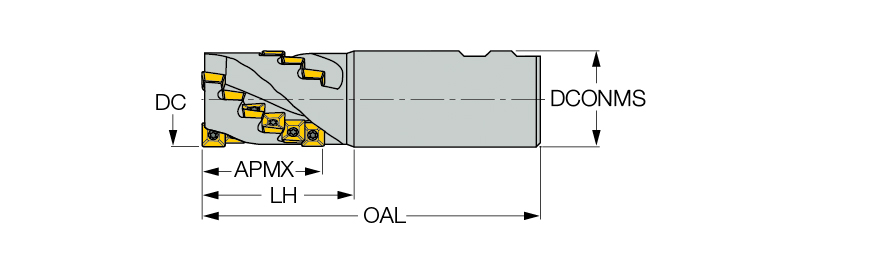

| Application | | Rampdown | Shouldering | Slotting | | Cutting Depth | 2″ |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Depth of Cut Maximum (APMX) | 1.4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 4-1/2″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 1.4″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended Flute carrying square inserts 1.25-2.00 dia. | Country of Origin | Israel |
Shipping Info
Package Weight
1.459
