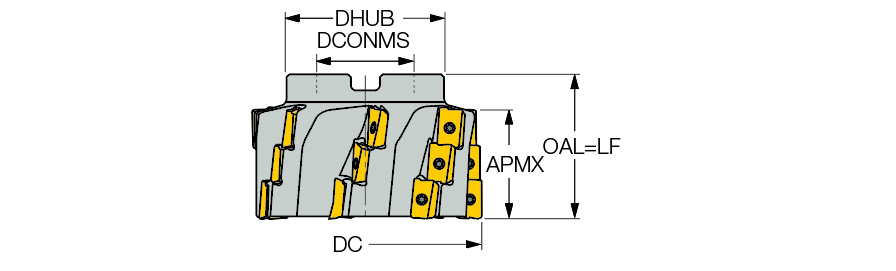

3M SM D050-36-4-22-13
| Depth of Cut Maximum (APMX) | 35 mm | Master Insert Identification (MIID) | 3M AXKT 13 |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Arbor Style | A |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Cutting Length | 35 mm | Tool Type | 90° Extended Flute Shell Mill |
| Number of Teeth | 12 |
Product Features
| Family Description | MILL2000, Heavy duty extended flute shell mills carrying 3M AXKT 1304.../2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications. | Country of Origin | IL |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece |
Shipping Info
Package Weight
1.3960
