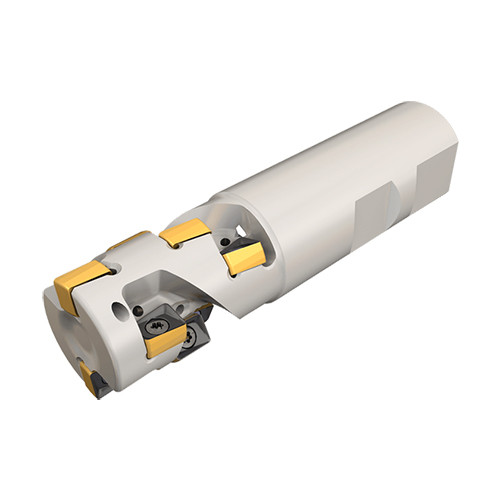

H490 ANK D32-42-3-W32-09C

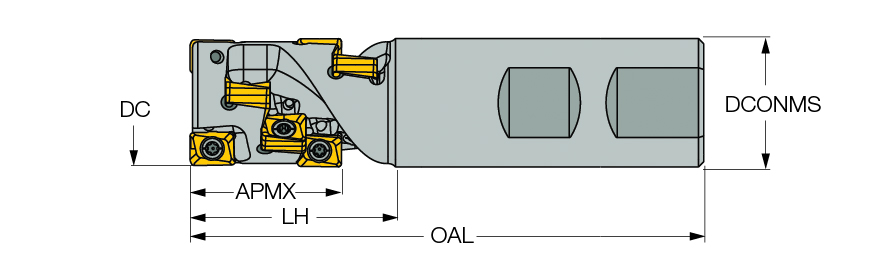

| Application | | Shouldering | Slotting | | Cutting Depth | 50 mm |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | H490 ANCX 090404PDR |
| Depth of Cut Maximum (APMX) | 42 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 115 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 42 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | Country of Origin | Germany |

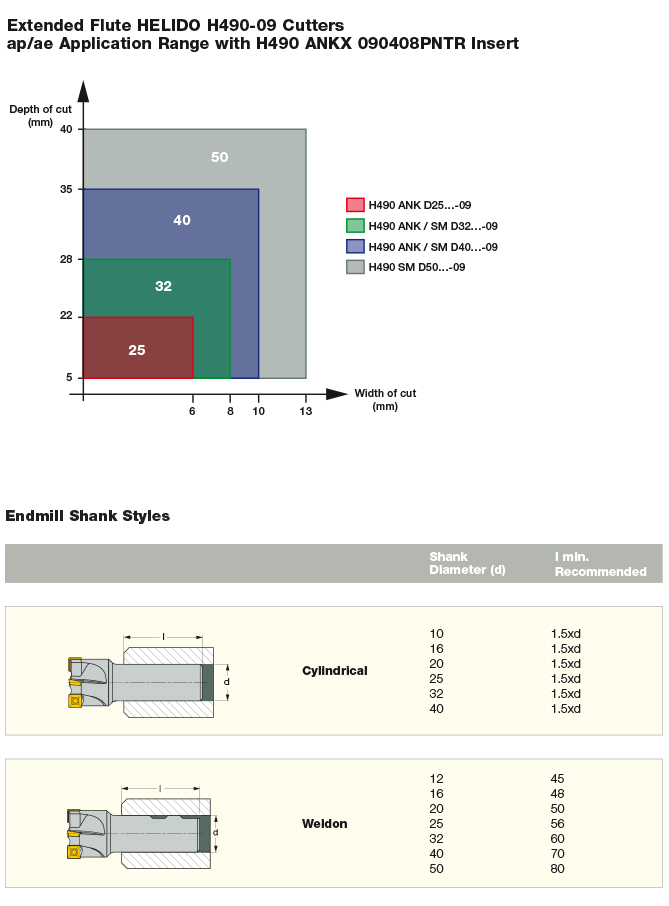

| Remarks | AE(max)=0.25xDC For adaptation, click on More Info |
Shipping Info
Package Weight
1.340
