| Application | | Shouldering | | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Cutting Item Count (CICT) | 30 | Coolant Supply Property (CSP) | Coolant Thru |

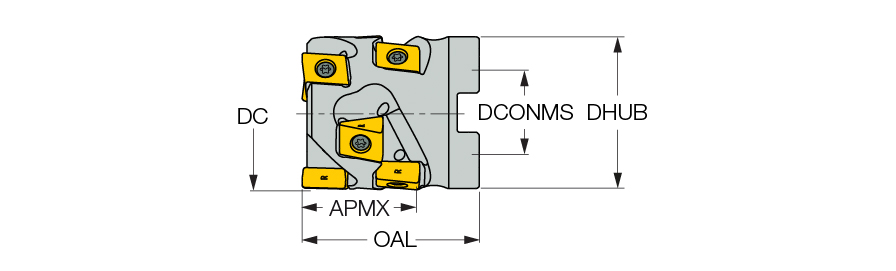

| Depth of Cut Maximum (APMX) | 70 mm | Arbor Style | A |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Body Material | Steel |

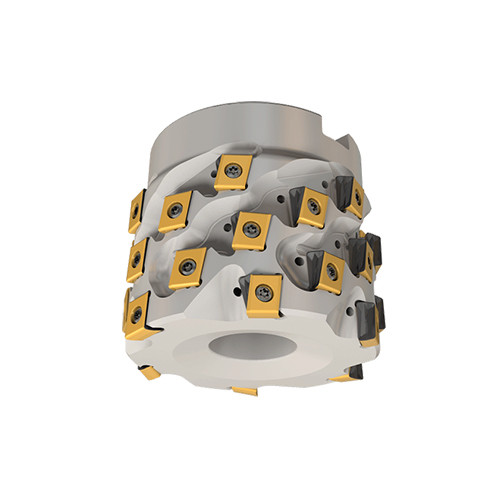

| Overall Length (OAL) | 111 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 70 mm | Hub Diameter (DHUB) | 74 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
7.185
