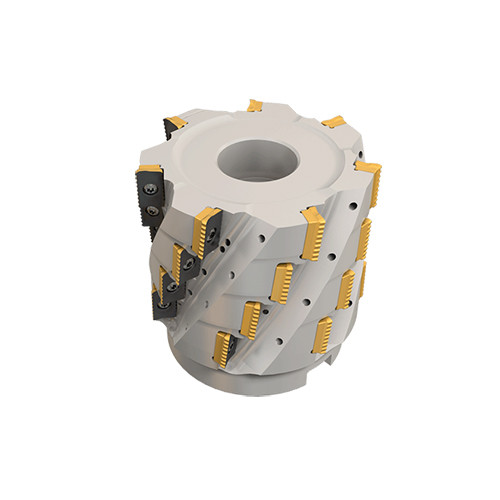

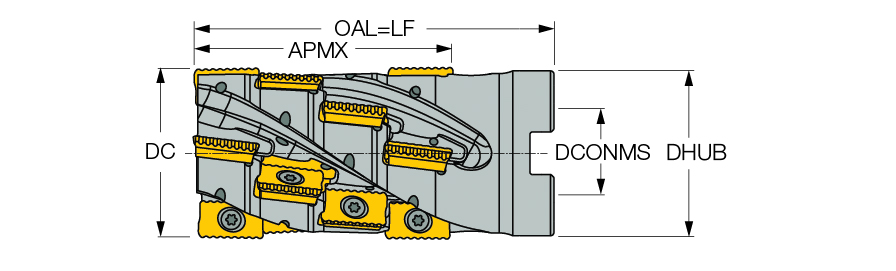

P290 SM D100-06-36-32-18
| Application | | Rampdown | Shouldering | | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 36 mm | Arbor Style | A |
| Cutting Diameter (DC) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Body Material | Steel |
| Overall Length (OAL) | 70 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 36 mm | Hub Diameter (DHUB) | 78 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying 12 and 18 mm long edged inserts. | Country of Origin | Israel |
| Remarks | Note: recommended ae up to 0.2xDC |
Shipping Info
Package Weight
6.261
