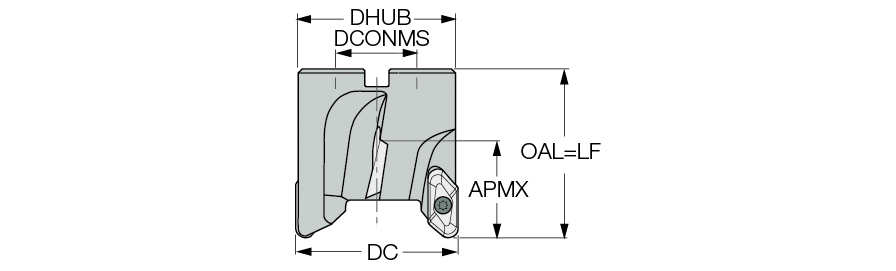

SM D63-30-22-16
| Depth of Cut Maximum (APMX) | 30 mm | Master Insert Identification (MIID) | HM90 APCR 16 |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Arbor Style | A |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 55 mm | Measurement Type | Metric |
| Cutting Length | 30 mm | Tool Type | Extended Flute for Aluminum |
| Number of Teeth | 4 |
Product Features
| Family Description | Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum. | Country of Origin | IL |
| Remarks | The upper insert should always have a 0.4 mm corner radius For corner radii larger than 2 mm, (on the lower insert) cutter's pocket should be modified Insert tightening torque: 6 Nxm HM90 APCR 1605..R-P inserts with corner radii larger than 4.5 mm should be used only on BR tools |
Shipping Info
Package Weight
1.5432
