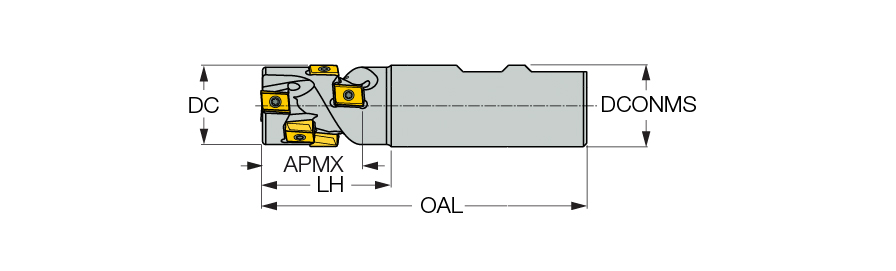

| Application | | Shouldering | | Cutting Depth | 30 mm |
| Cutting Item Count (CICT) | 4 | Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Depth of Cut Maximum (APMX) | 15 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 80 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 15 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features

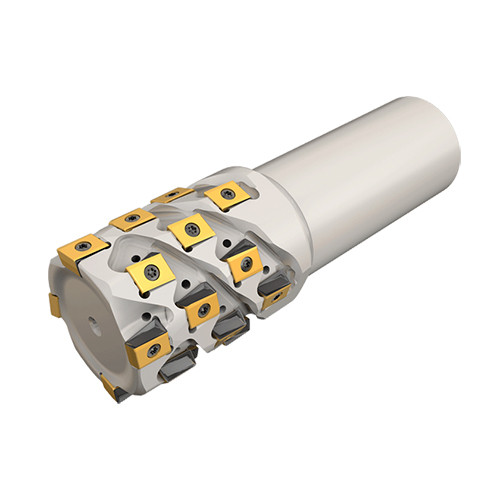

| Family Description | Extended flute endmills carrying T490 LNMT/HT 08... tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.470
