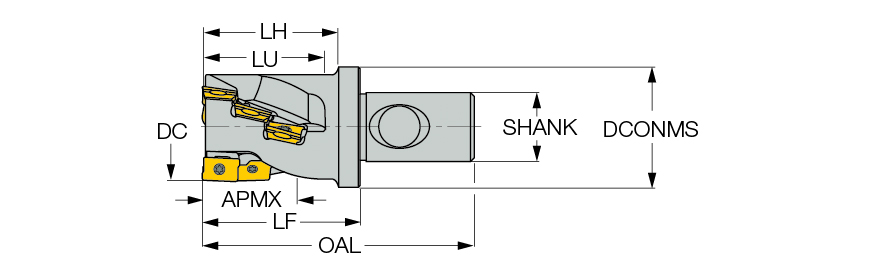

3M AXK D40-48-4-CF4-13
| Depth of Cut Maximum (APMX) | 48.5 mm | Cutting Depth | 57 mm |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.699″ | Measurement Type | Metric |
| Cutting Length | 48.5 mm | Body Material | Clickfit |
| Number of Teeth | 16 | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | Heavy duty extended flute endmills with CLICKFIT shanks carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications. | Country of Origin | IL |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece For adaptation click on "More Info" |
Shipping Info
Package Weight
1.5260
