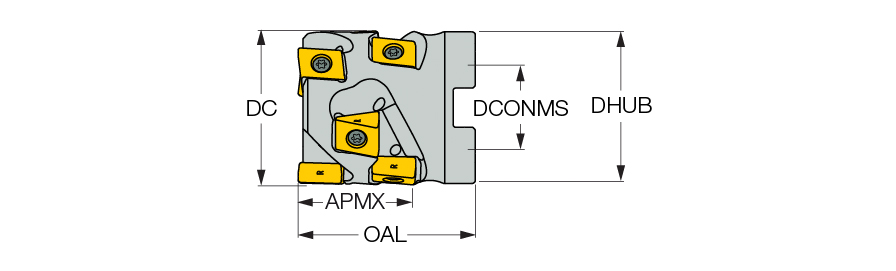

| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 9 | Master Insert Identification (MIID) | T490 LNMT 1607PNR |
| Depth of Cut Maximum (APMX) | 47 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 63 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 58 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Material | Steel |
| Cutting Length | 47 mm | Tool Type | 90° Extended flute shell mill |
Product Features

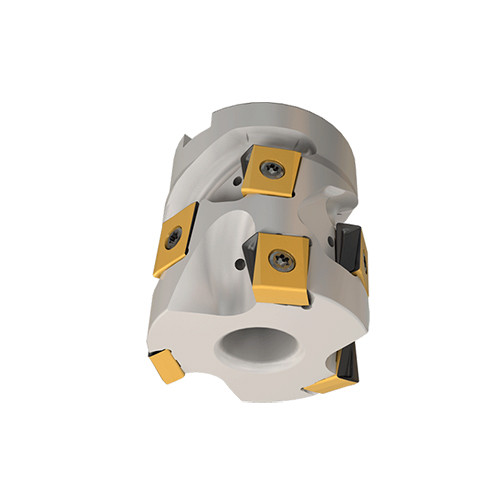

| Family Description | Extended flute shell mills carrying T490 LNMT/HT 1607... tangentially clamped inserts (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
2.657
