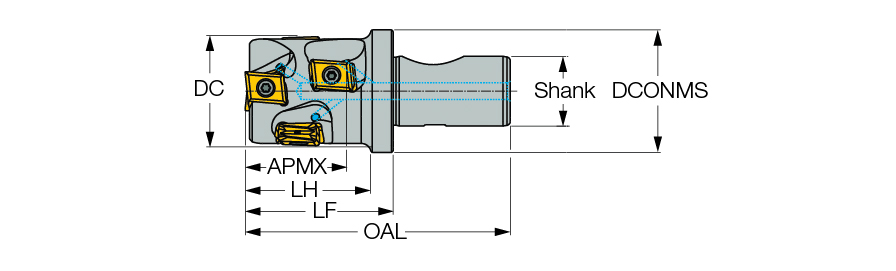

| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 20 | Master Insert Identification (MIID) | T490 LNHT 1306..PNTR |
| Depth of Cut Maximum (APMX) | 59 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 44 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 115 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 59 mm | Connection Code Machine Side (CCMS) | CLICKFIT |
Product Features

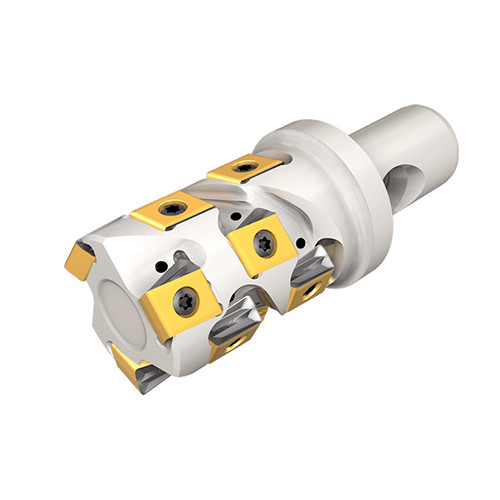

| Family Description | Extended flute endmills with CLICKFIT shanks carrying T490 LNMT/HT 1306... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
2.097
