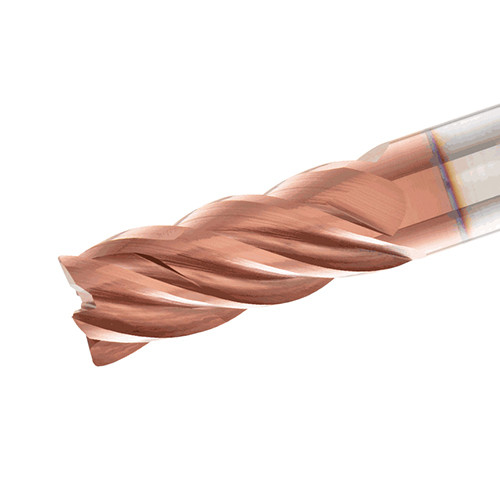

ECYI-S5R500-1.0C060CFS3.5 IC608
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 0.06″ RE ; 5 FL ; 1″ LBS ; Carbide ; AlTiCrSiN

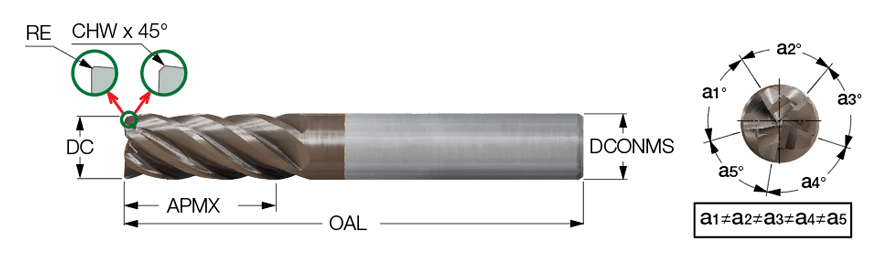

| Cutting Diameter (DC) | 1/2″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3-1/2″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

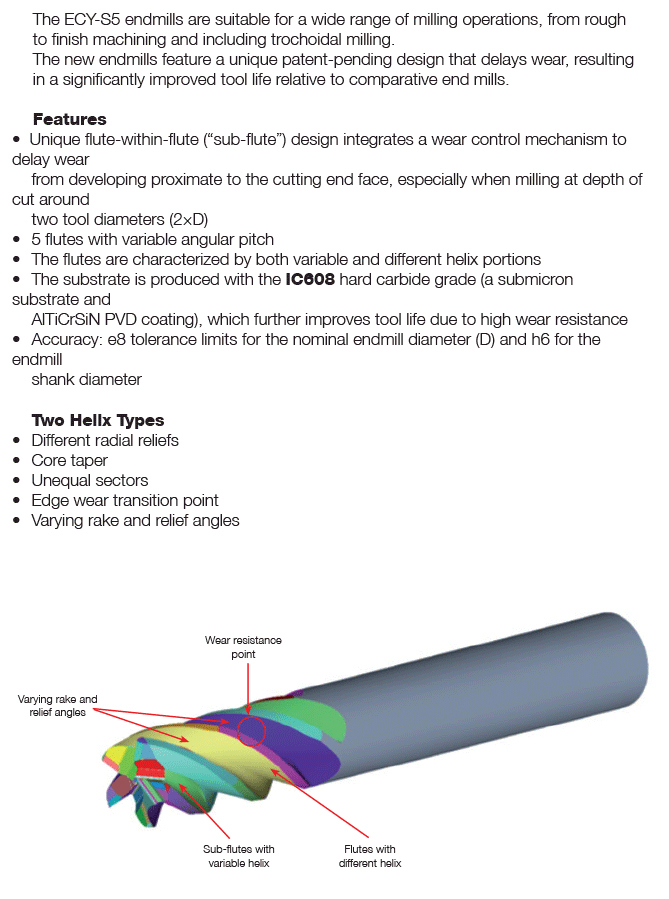

| Family Description | 5 flute endmills with different helix for milling austenitic, duplex, cast and precipitation hardened stainless steels. | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
