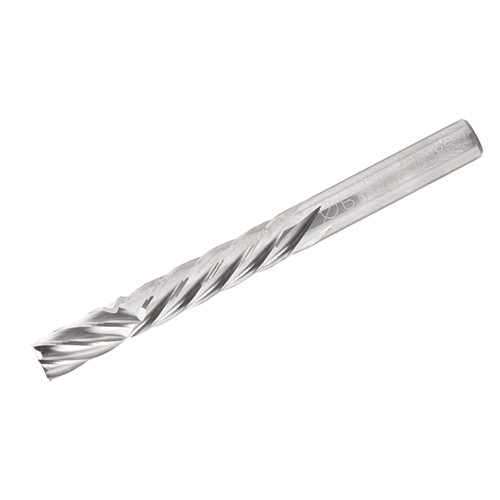

EPXI-F6 250-500C250F2.5 IC02
SQ End Mill; 1/4″ Dia. × 0.22″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 6 FL ; 1/2″ LBS ; Carbide ; Uncoated

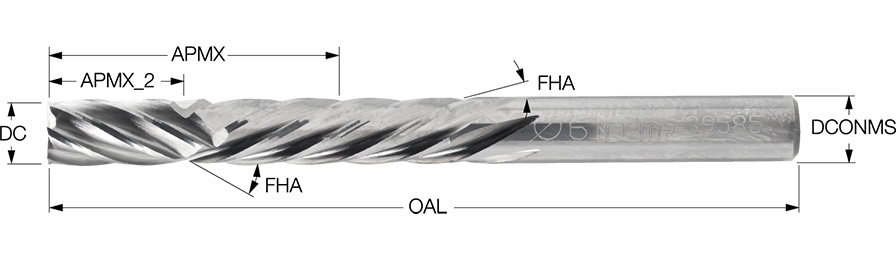

| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.22″ | Grade | IC02 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0023 ″/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.0007 ″/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Shouldering | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide endmill with right- and left-hand helix flutes, enables Changing Direction at Mid Cutting Height for machining laminated stock of different types of composite materials. | Country of Origin | Israel |

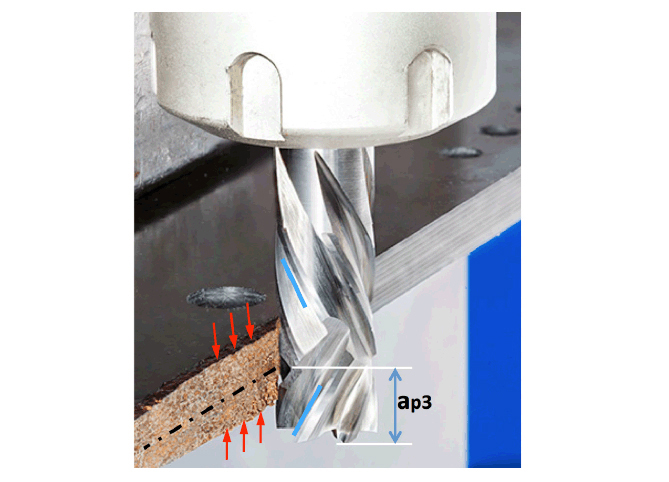

| Remarks | Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height Coated tools available on request |
Shipping Info
Package Weight
0.067
