T490LNKD1.50-20-3-W125-11

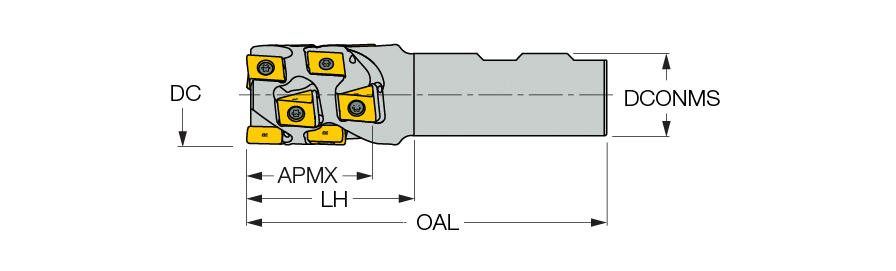

| Application | | Shouldering | | Cutting Depth | 2.36″ |
| Cutting Item Count (CICT) | 18 | Master Insert Identification (MIID) | T490 LNHT 1106PNTR |
| Depth of Cut Maximum (APMX) | 2.02″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 4.7″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 2.02″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying T490 LN#T 11... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Important: Maximum clamping torque 28.3 lbf*in |
Shipping Info
Package Weight
1.609
