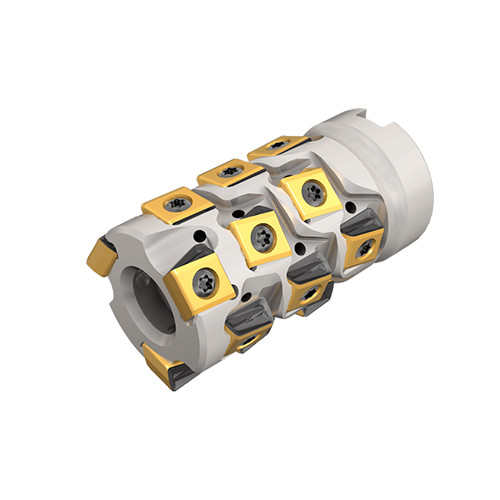

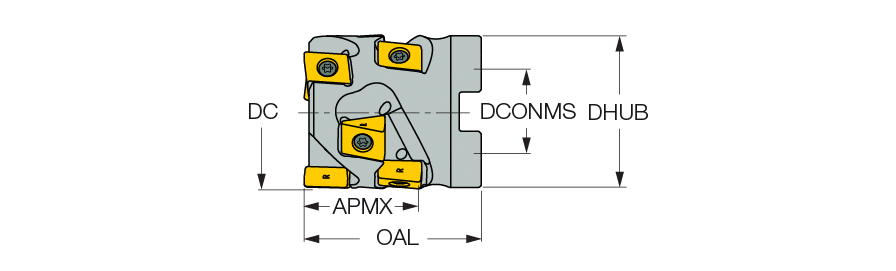

T490 SM-D2.0-2.3-4-1.0-11
| Application | | Shouldering | | Master Insert Identification (MIID) | T490 LNHT 1106PNTR |
| Cutting Item Count (CICT) | 28 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 2.35″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 3-1/4″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 2.35″ | Hub Diameter (DHUB) | 1.921″ |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Important: Maximum clamping torque 28.3 lbf*in |
Shipping Info
Package Weight
1.499
