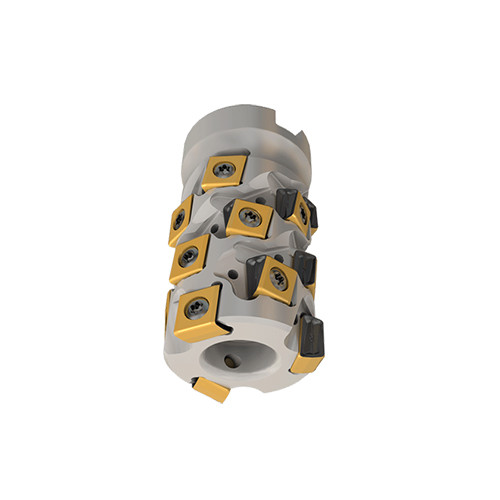

T490 SM-D50-59-4-22-11
| Application | | Shouldering | | Master Insert Identification (MIID) | T490 LNHT 1106PNTR |
| Cutting Item Count (CICT) | 28 | Coolant Supply Property (CSP) | Coolant Thru |

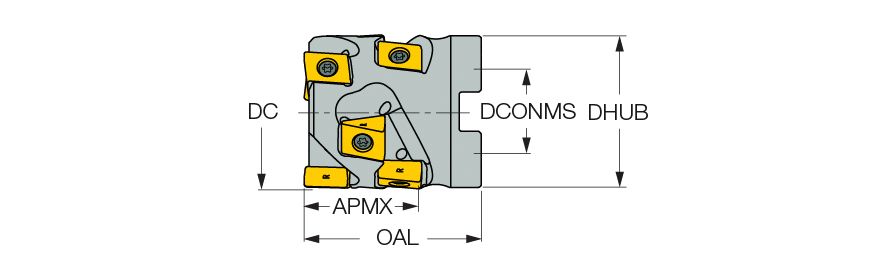

| Depth of Cut Maximum (APMX) | 59 mm | Arbor Style | A |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 80 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 59 mm | Hub Diameter (DHUB) | 48 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Important: Maximum clamping torque 3.2 Nxm |
Shipping Info
Package Weight
2.143
