SCD0328-0717-0394IXC20 IC908

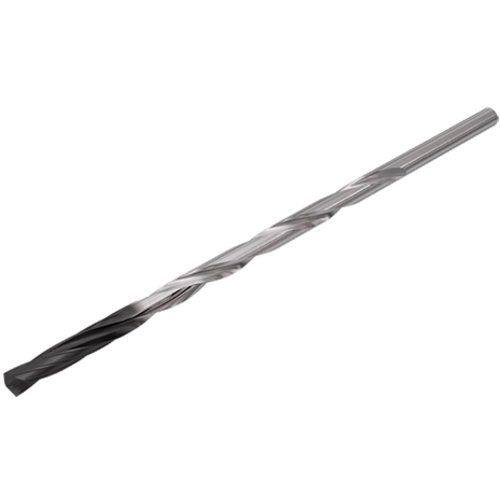

SC Drill; 0.328″ Dia. × 0.394″ Shank Dia. × 10.236″ OAL × 7.68″ LCF ; 135 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.328″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.328″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.328″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 7.17″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 7.68″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Overall Length (OAL) | 10.236″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.068″ | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.575″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling Depth 20xD, for machining ISO K materials | Country of Origin | USA |
| Remarks | Based on DIN 6537 standard |
Shipping Info
Package Weight
183
