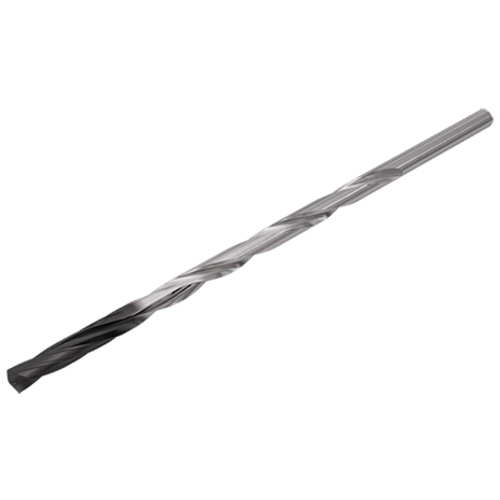

SCD0250-0453-0315IXC16 IC908
SC Drill; 1/4″ Dia. × 0.315″ Shank Dia. × 6.496″ OAL × 4.92″ LCF ; 135 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 4.53″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 4.92″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Overall Length (OAL) | 6.496″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0518″ | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.417″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling Depth 16xD, for machining ISO K materials | Country of Origin | USA |
| Remarks | Based on DIN 6537 standard |
