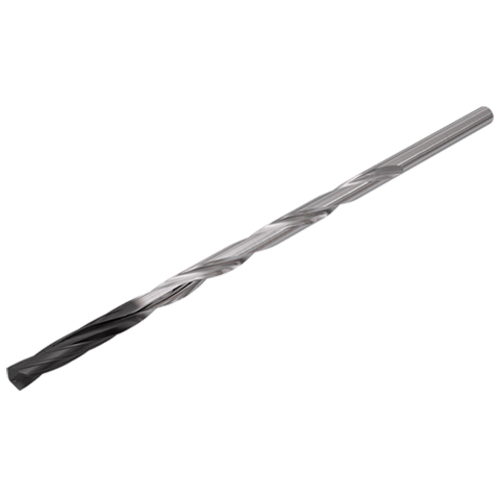

SCD 033-075-060 IXC20 IC908

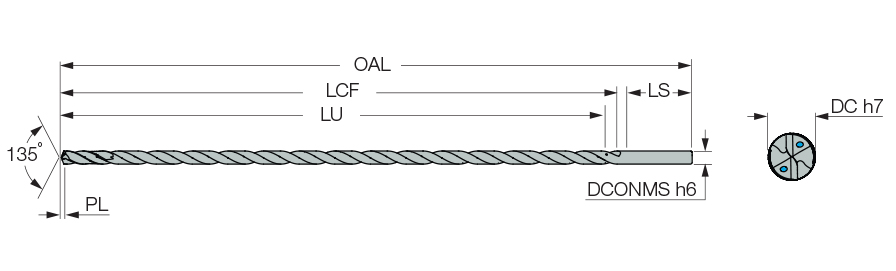

SC Drill; 3.3 mm Dia. × 6 mm Shank Dia. × 120 mm OAL × 80 mm LCF ; 135 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 75 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 80 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 120 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.68 mm | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 36 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling Depth 20xD, for machining ISO K materials | Country of Origin | USA |
| Remarks | Based on DIN 6537 standard |
Shipping Info
Package Weight
26
